Radiodetection

Utility Locating and Detection

S9 MiniSonde Kit 33kHz

Part number

10/SONDE-MINI-33

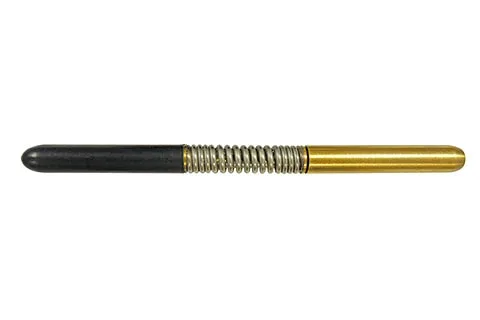

S9 MiniSonde Kit 33kHz

A 9 mm flexible, battery-powered sonde transmitting at 33kHz for small-diameter non-metallic pipes and ducts. Its spring section lets it pass bends and existing cables so blockages can be pinpointed from the surface.

130 mmMinimum bend radius

Specifications

Signal frequency	33kHz (32768Hz), continuous
Maximum locate depth	approx. 4 m (13 ft)
Diameter	9 mm (0.35 in)
Length	138 mm (5.4 in)
Battery	CR535 lithium cell
Battery life	approx. 10 h at room temperature, 8 h at 0°C
Attachment	M6 female thread
Minimum bend radius	130 mm
Intended use	non-conductive tubes and pipes
Indicator	flashing red power-on LED
Kit contents	sonde with flexible spring, battery unit, 2 batteries, case, user guide
