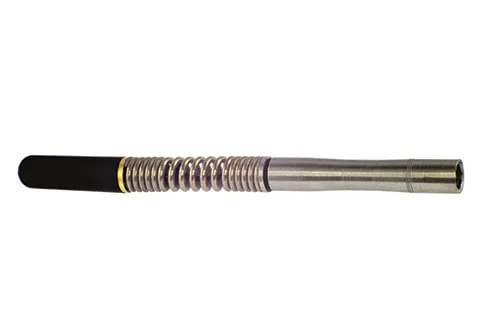

Utility Locating and DetectionS6 MicroSonde Kit 33kHz
Part number
10/SONDE-MICRO-33
A 6.4 mm battery-powered sonde transmitting at 33kHz for tracing micro-ducts and small non-metallic pipes. It can be pushed, pulled or blown through the duct and pinpointed from above ground with a Radiodetection locator.
130 mmMinimum bend radius
sondeKit contents
Specifications
| Signal frequency | 33kHz (32768Hz), continuous |
|---|---|
| Maximum locate depth | approx. 2 m (6.5 ft), condition dependent |
| Diameter | 6.4 mm (0.25 in) |
| Length | 83 mm (3.2 in) |
| Battery | 1 x 3V CR425 lithium cell |
| Battery life | approx. 10 h at room temperature, 8 h at 0°C |
| Attachment | M5 female thread |
| Minimum bend radius | 130 mm |
| Intended use | non-conductive tubes and pipes from 8 mm (0.3 in) diameter |
| Indicator | flashing power-on LED |
| Kit contents | sonde, rigid and flexible battery caps, 2 batteries, case, manual |
Standards
