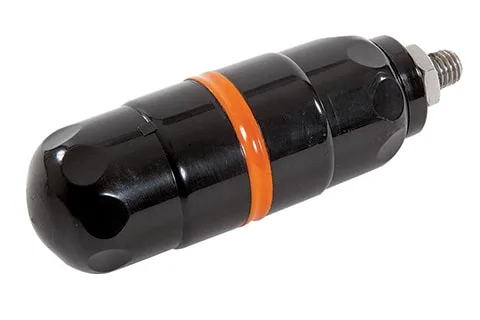

Utility Locating and DetectionStandard Sonde 33kHz
Part number
10/SONDE-STD-33
Self-contained, battery-operated signal transmitters that are pushed through non-metallic pipes, ducts, drains and sewers on a rod. A Radiodetection locator set to the same frequency traces the route and pinpoints blockages or collapses from above ground.
33kHzSignal frequency
5 m (16 ft)Maximum locate depth
512HzFrequency options in range
Specifications
| Signal frequency | 33kHz |
|---|---|
| Maximum locate depth | 5 m (16 ft) |
| Diameter | 39 mm (1.53 in) |
| Length | 105 mm (4.13 in) |
| Power | self-contained battery operation |
| Deployment | connects to a Flexrod for pipes and ducts |
| Frequency options in range | 512Hz, 8kHz, 33kHz |
Standards
Related items
S6 MicroSonde 33kHz10/SONDE-MICRO-33S6 MicroSonde Kit 33kHz
S9 MiniSonde 33kHz10/SONDE-MINI-33S9 MiniSonde Kit 33kHz
Radiodetection Sondes10/SONDE-S13-33S13 Sonde Kit 33kHz
Radiodetection Sondes10/SONDE-S18A-33S18 Sonde 33kHz
Radiodetection Sondes10/SONDE-BENDI-512Bendi Sonde 512Hz
Radiodetection Sondes10/SONDE-STD-512Standard Sonde 512Hz
Radiodetection Sondes10/SONDE-STD-8Standard Sonde 8kHz

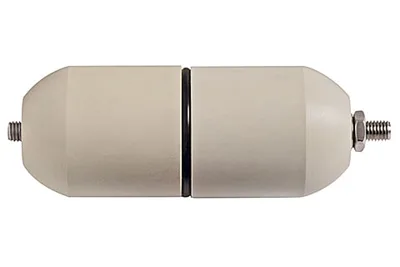

Radiodetection Sondes10/SONDE-SEWER-33Sewer Sonde 33kHz
