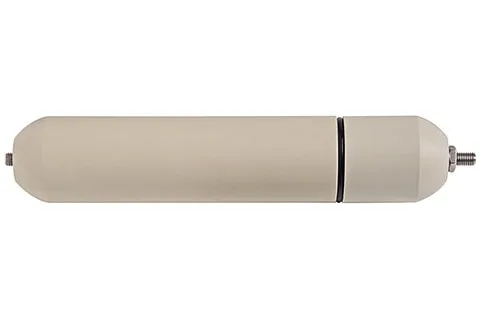

Utility Locating and DetectionSuper Sonde 33kHz (deep sewer)
Part number
10/SONDE-SUPER-33
Self-contained, battery-operated signal transmitters that are pushed through non-metallic pipes, ducts, drains and sewers on a rod. A Radiodetection locator set to the same frequency traces the route and pinpoints blockages or collapses from above ground.
33kHzSignal frequency
15 m (49 ft)Maximum locate depth
deep sewersApplication
Specifications
| Signal frequency | 33kHz |
|---|---|
| Maximum locate depth | 15 m (49 ft) |
| Diameter | 64 mm (2.51 in) |
| Length | 318 mm (12.51 in) |
| Power | self-contained battery operation |
| Application | deep sewers |
Standards
