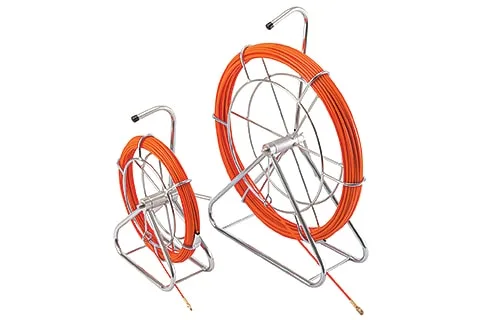

Utility Locating and DetectionFlexrod 60 m x 9 mm push rod
Part number
10/FLEXRODF60
Glass-fibre push rods on steel frames with a manual brake, used to drive sondes along pipes, drains and ducts or to pull draw-strings. FlexiTrace is a conductive rod with a built-in sonde that a transmitter energises so its whole length can be traced from the surface.
Specifications
| Rod diameter | 9 mm (0.35 in) |
|---|---|
| Rod length | 60 m (197 ft) |
| Weight | 26 kg (57 lb) |
| Minimum bend radius | 310 mm (12 in) |
| Rod connection | M12 male thread, supplied with M10 female thread adaptor |
| Frame size (L x W x H) | 850 x 520 x 940 mm |
| Rod material | E-glass and vinyl ester core, UV-stabilised polypropylene sleeve |
| Frame | steel frame with manual brake |
Standards
Related items

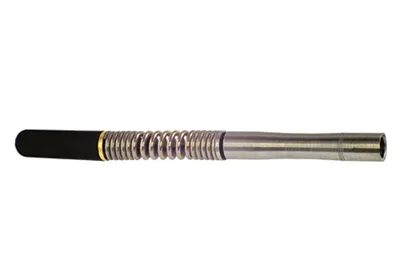

S6 MicroSonde 33kHz10/SONDE-MICRO-33S6 MicroSonde Kit 33kHz

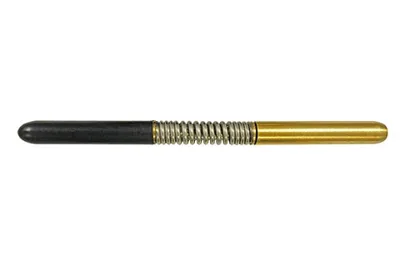

S9 MiniSonde 33kHz10/SONDE-MINI-33S9 MiniSonde Kit 33kHz

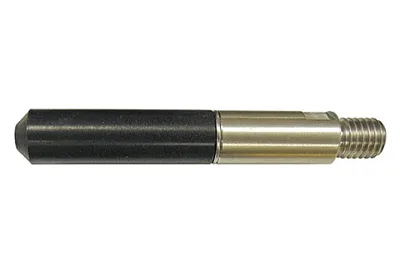

Radiodetection Sondes10/SONDE-S13-33S13 Sonde Kit 33kHz

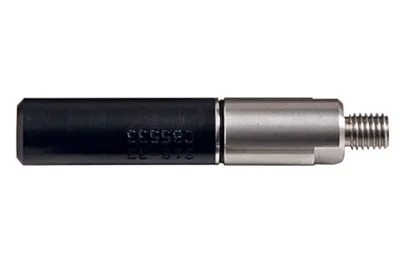

Radiodetection Sondes10/SONDE-S18A-33S18 Sonde 33kHz

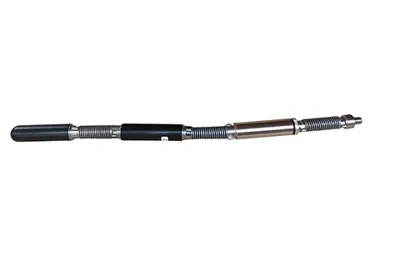

Radiodetection Sondes10/SONDE-BENDI-512Bendi Sonde 512Hz

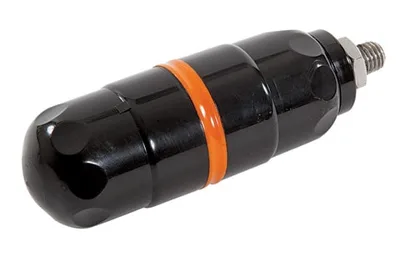

Radiodetection Sondes10/SONDE-STD-512Standard Sonde 512Hz
