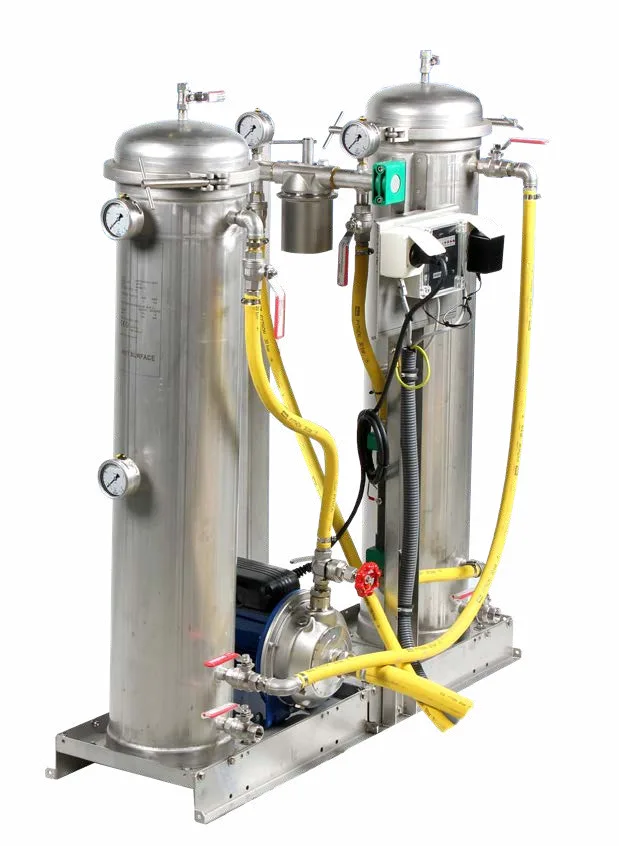

Ultrasonic CleaningClosed Loop Rinse Water Regeneration
Part number
V03CLP2SDICM
Filtration, rinse-water regeneration, oil-separation and circulation modules that extend the life of wash and rinse liquids. They give more consistent cleaning results and cut operating costs.
2 x 32 lFilling volume
ST3Conductivity meter
2 x P2S bagFilter vessel
CentrifugalPump
Specifications
| Function | Organics removal by active carbon and demineralisation by ion exchange resin |
|---|---|
| External dimensions | 1020 x 340 x 1100(h) mm |
| Filling volume | 2 x 32 l |
| Temperature range | Ambient - 60°C |
| Conductivity meter | ST3, 0 - 50 µS/cm |
| Filter vessel | 2 x P2S bag, one charge of carbon and resin included |
| Pump | Centrifugal, 1-phase, 5 l/min, 2 bar |
| Voltage | 220-240 VAC 50 Hz |
| Connected load | 500 W |
| Materials | AISI 316L valves, AISI 304 platform and vessel, EPDM hoses |
