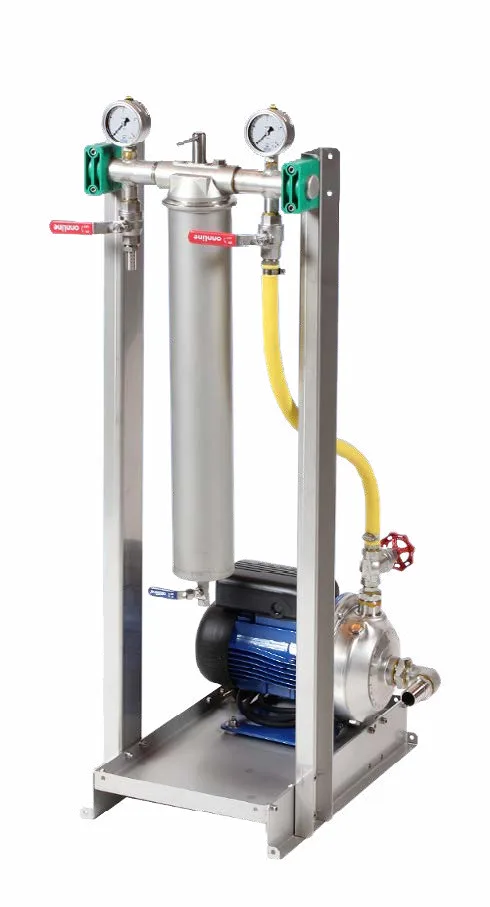

Ultrasonic CleaningClosed Loop Filtration 20"
Part number
V03CL20CM
Filtration, rinse-water regeneration, oil-separation and circulation modules that extend the life of wash and rinse liquids. They give more consistent cleaning results and cut operating costs.
5 lFilling volume
CentrifugalPump
500 WConnected load
Specifications
| Function | Particle filtration (tank > pump > filter > tank) |
|---|---|
| External dimensions | 510 x 340 x 1100(h) mm |
| Filling volume | 5 l |
| Temperature range | Ambient - 80°C |
| Filter vessel | 20" cartridge, 1 x 50 micron cartridge included |
| Pump | Centrifugal, 1-phase, 15 - 65 l/min, 2 bar |
| Voltage | 220-240 VAC 50 Hz |
| Connected load | 500 W |
| Materials | AISI 316L valves, AISI 304 platform and vessel, EPDM hoses |
