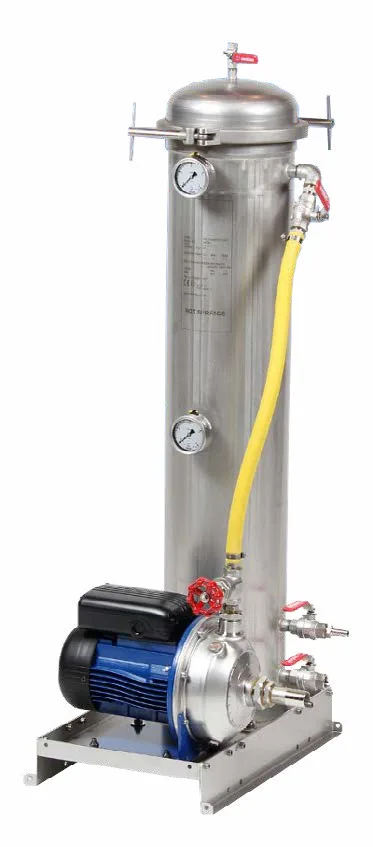

Ultrasonic CleaningClosed Loop Filtration P2S
Part number
V03CLP2SCM
Filtration, rinse-water regeneration, oil-separation and circulation modules that extend the life of wash and rinse liquids. They give more consistent cleaning results and cut operating costs.
32 lFilling volume
P2S bagFilter vessel
CentrifugalPump
500 WConnected load
Specifications
| Function | Particle filtration (tank > pump > filter > tank) |
|---|---|
| External dimensions | 510 x 330 x 1100(h) mm |
| Filling volume | 32 l |
| Temperature range | Ambient - 80°C |
| Filter vessel | P2S bag, 1 x 50 micron bag included |
| Pump | Centrifugal, 1-phase, 15 - 65 l/min, 2 bar |
| Voltage | 220-240 VAC 50 Hz |
| Connected load | 500 W |
| Materials | AISI 316L valves, AISI 304 platform and vessel, EPDM hoses |
