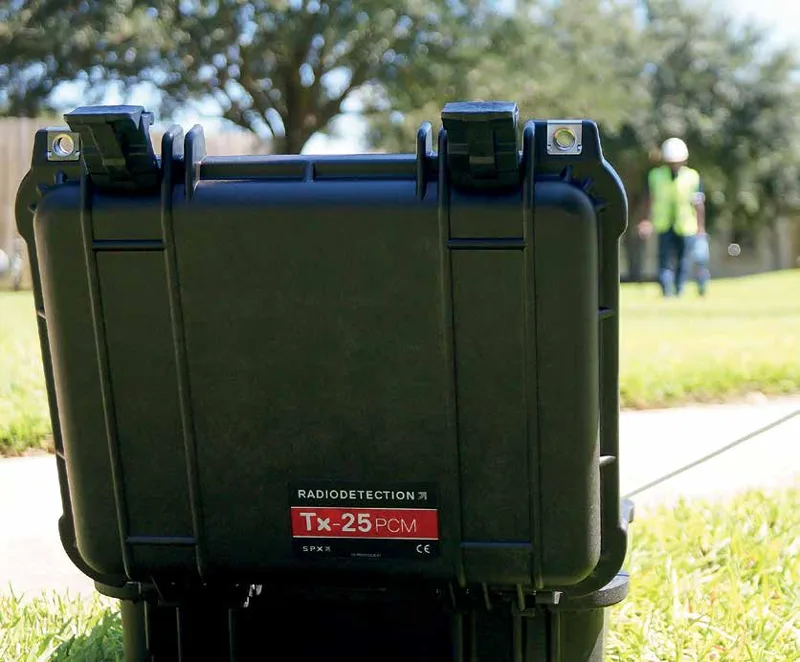

Cathodic ProtectionTx-25PCM Pipeline Current Mapper Transmitter (25 W)
Part number
Tx-25PCM
Constant-current transmitters that inject the 4 Hz mapping signal plus a locate frequency into a pipeline for PCMx coating surveys. The battery-powered Tx-25PCM (25 W, 1 A) suits distribution networks; the Tx-150PCM (150 W, 3 A) drives signals over long transmission pipelines.
25 WMaximum output power
1 AMaximum output current
100 V peakMaximum output voltage
30 mAOutput current steps
Specifications
| Type | Constant-current transmitter, battery or mains powered |
|---|---|
| Maximum output power | 25 W |
| Maximum output current | 1 A |
| Maximum output voltage | 100 V peak |
| Output current steps | 30 mA, 60 mA, 100 mA, 300 mA, 600 mA, 1 A |
| Modes (50 Hz regions) | ELF 4 Hz + 128 Hz, ELCD 4 Hz + 8 Hz + 128 Hz, LFCD 4 Hz + 8 Hz + 640 Hz, 8 kHz locate |
| Modes (60 Hz regions) | ELF 4 Hz + 98 Hz, ELCD 4 Hz + 8 Hz + 98 Hz, LFCD 4 Hz + 8 Hz + 512 Hz, 8 kHz locate |
| Power | 110/120 V 60 Hz or 230/240 V 50 Hz AC, integrated Li-Ion battery |
| Battery life | 8 h at 600 mA, 4 h at 1 A |
| Charging time | 3-4 h to 80% |
| Ingress protection | IP54 lid open, IP67 lid closed |
| Dimensions | 406 x 330 x 174 mm |
| Weight | 8.1 kg |
| Operating temperature | -10 to +50 °C |
Standards
- ENEN 60950-1
- EN 61326-12013
- LVDLVD 2014/35/EU
- EMCEMC 2014/30/EU
- RoHSRoHS 2011/65/EU
