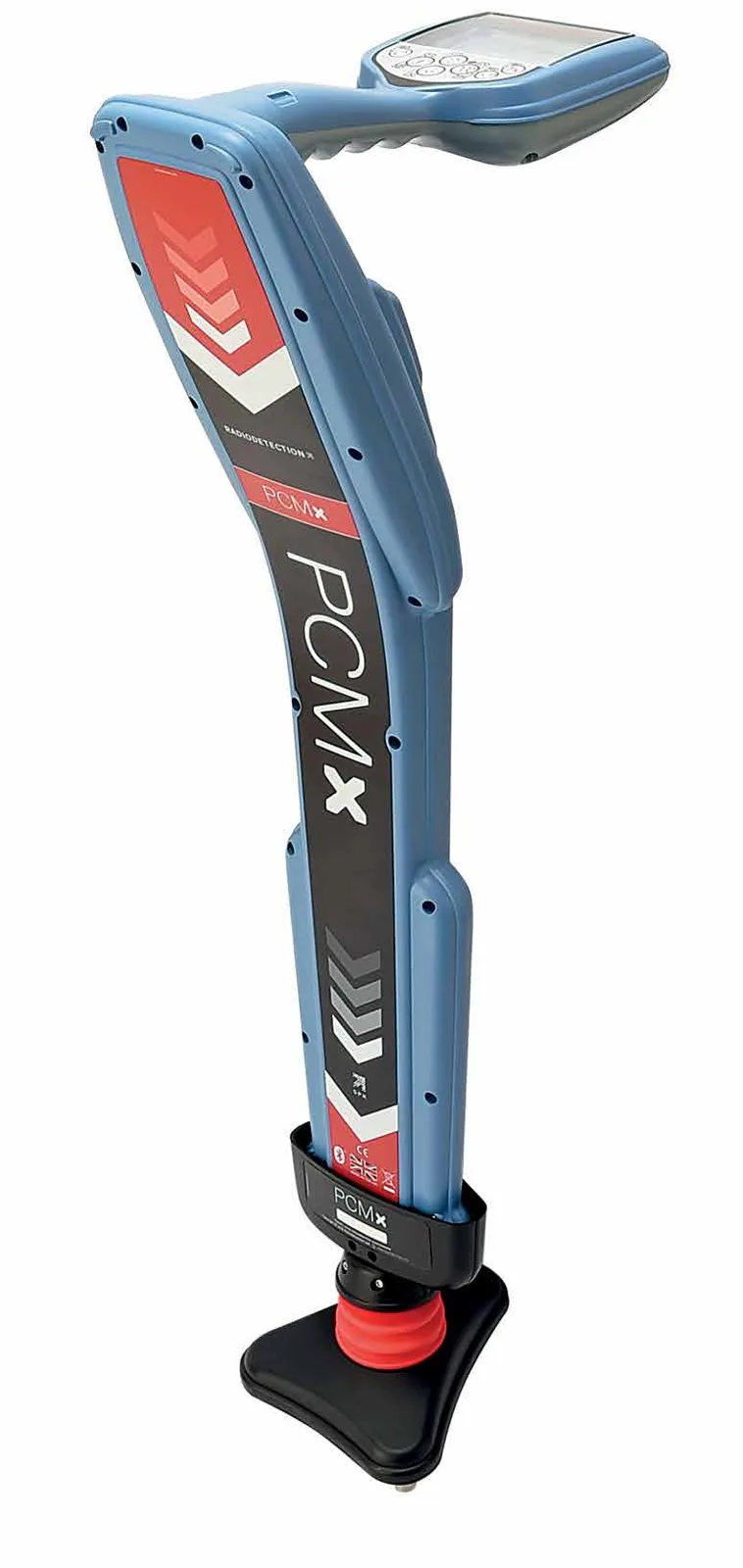

Cathodic ProtectionPCMx Pipeline Current Mapper Receiver
Part number
PCMx

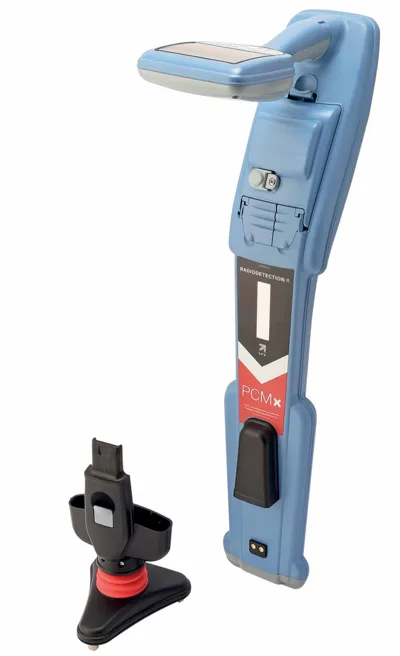

A pipeline current mapper for coating surveys on buried pipelines: it measures the 4 Hz signal current, depth of cover and GPS position at each survey point, running ACCA and ACVG surveys in one pass to find coating defects and shorts to other structures. With the magnetometer foot removed it works as a full precision cable and pipe locator.
±3% at 2 mDepth precision
30 m lineMaximum depth readout
10Survey memory
Li-Ion packBattery
Specifications
| Function | Pipeline current mapper (ACCA and ACVG coating surveys) and precision locator |
|---|---|
| 4 Hz current accuracy | ±5% at 1 m depth with 1 A |
| Sensitivity | 2 mA at 1 m (4 Hz magnetometer), 5 µA at 1 m (33 kHz locate) |
| Depth precision | ±3% at 2 m, ±5% at 3 m |
| Maximum depth readout | 30 m line, 20 m sonde |
| Survey modes | ELF (4 Hz + 98/128 Hz), ELCD (4 Hz + 8 Hz + 98/128 Hz), LFCD (4 Hz + 8 Hz + 512/640 Hz) |
| Mapping measurement time | 1 s per reading |
| Survey memory | 10,000 records with internal GNSS position (3 m CEP with SBAS) |
| Data export | Bluetooth and USB, CSV and KML via PC software |
| Locator mode | RD8100PDLG functions with magnetometer foot removed |
| Battery | Li-Ion pack, 35 h continuous (2 x D-cell option: 13 h) |
| Weight | 2.2 kg with Li-Ion pack |
| Ingress protection | IP65 |
| Operating temperature | -20 to 50 °C |
Standards
- EN 61010-12010
- EN 61326-12013
- ENEN 300 330-2
- ENEN 300 440-2
- ENEN 301 489-3
- ENEN 301 489-17
- ENEN 60529 (IP65)
- FCCFCC
- ICIC
- RoHSRoHS 2011/65/EU
- REDRED 2014/53/EU
