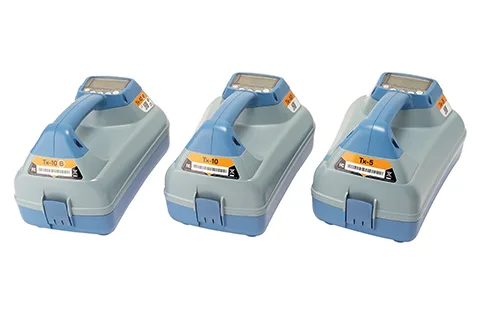

Utility Locating and DetectionTx-10 Signal Transmitter (10 W)
Part number
Tx-10
Signal transmitters that apply a locate signal to a cable or pipe by direct connection, clamp or induction, for use with RD8200, RD7200 and marker locators. Up to 90 V output helps signals travel on high-impedance lines.
10 WMax power output
YesBoost
90 VMax output voltage
0.5 AMax output current
Specifications
| Max power output | 10 W |
|---|---|
| Induction field strength | 1.0 (relative) |
| Fault find | 8KFF and CDFF |
| Current Direction | 15 CD pairs incl. 4096/8192 Hz MFCD |
| Boost | Yes |
| Max output voltage | 90 V |
| Max output current | 0.5 A |
| Output modes | Direct connection, clamp, induction (10/20/50/100%) |
| Battery | 8 x D-cell (alkaline 4 h / NiMH 7 h) or Li-Ion pack (8 h), DC in 12 V 3 A |
| Ingress protection | IP65 |
| Weight | 3.9 kg (alkaline) / 3.8 kg (Li-Ion) |
| Dimensions | 350 x 220 x 220 mm |
| Operating temperature | -20 to 50 C |
Standards
- Safety EN 60950-12006+A2:2013
- EN 60950-222006
- EMC EN 61326-12013
- ENEN 300 330-2 V1.5.1
- ENEN 301 489-3 V1.6.1
- ENEN 301 489-17 V2.2.1
- FCCFCC
- ICIC
- ISO 90012015
Related items
Tx Multifunction Signal TransmittersTx-5Tx-5 Signal Transmitter (5 W)
Tx Multifunction Signal TransmittersTx-10BTx-10B Signal Transmitter with iLOC (10 W, Bluetooth)

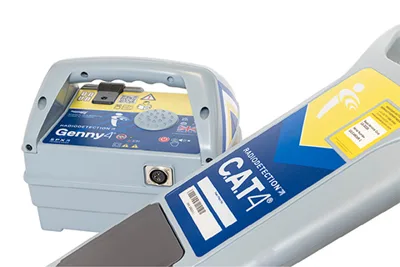

Genny4 Signal GeneratorGenny4Genny4 Signal Generator
