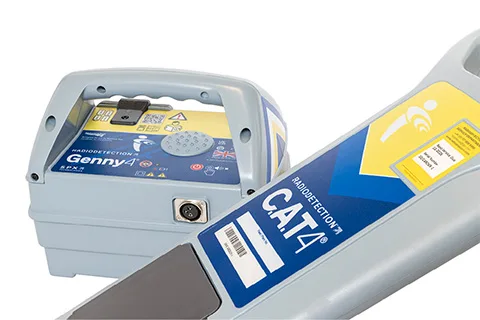

Genny4 — Genny4 Signal Generator

Signal generator for the C.A.T4 range that puts a traceable signal on buried cables and pipes. Its dual-frequency output helps find small cables such as telecom and street lighting.

4 x D-cellBattery

IP54Ingress protection

-10 to 50 COperating temperature

Specifications

Output frequencies	33 kHz + 131 kHz simultaneous (direct connection and clamp), 33 kHz induction
Max output power	1 W direct connection
Max output voltage	23 V RMS open circuit
Max output current	66 mA RMS short circuit
Output level	Standard or Boost
Battery	4 x D-cell, 40 h standard / 15 h boost (direct connection)
Ingress protection	IP54
Weight	2.75 kg with batteries and tool tray
Dimensions	275 x 170 x 200 mm
Operating temperature	-10 to 50 C

Standards

Safety EN 60950-12006+A2:2013
EN 60950-222006
EMC EN 61326-12013
ENEN 300 330-2 V1.5.1
ENEN 301 489-3 V1.6.1
ENEN 301 489-17 V2.2.1
FCCFCC
ICIC

Datasheet

Genny4 Transmitter SpecificationDoc. 90/GENNY4-TS-ENG Rev. 02 · PDF · manufacturer document
