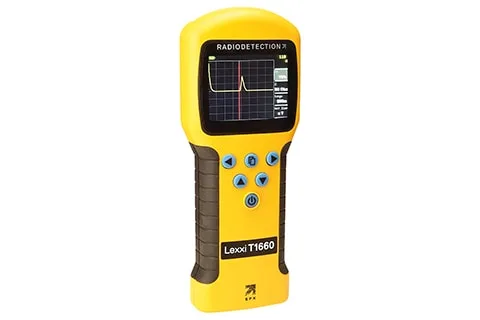

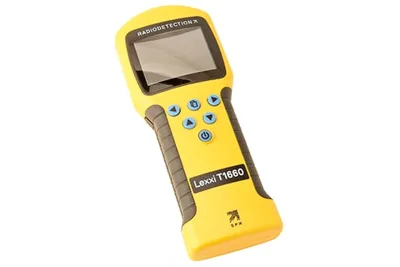

Cable Test and Fault LocationLexxi T1660 Hand-held Cable Fault Locator (TDR)
Part number
10/T1660
A compact hand-held time domain reflectometer for first-response fault finding on any metallic cable with two conductors, including telecom twisted pair, CATV, Ethernet and LV power cables. Plug-in modules adapt the output impedance, and the mains blocking filter module allows safe testing of live three-phase cables.
0.5 mDead zone
IP54Ingress protection
600 gWeight
-10 to 50 °COperating temperature
Specifications
| Ranges | 11 manual ranges, 7 m to 6000 m |
|---|---|
| Accuracy | 1% of selected range |
| Resolution | approx. 1% of range |
| Dead zone | 0.5 m |
| VoP | adjustable 1% to 99% |
| Output pulse | 5 V p-p into open circuit, 3 ns to 3 ms (automatic with range) |
| Output impedance | selectable 25, 50, 75, 100 Ω |
| Display | 3.5-inch colour backlit LCD, 328 x 256 |
| Voltage protection | 250 V AC (600 V AC CAT III / 300 V AC CAT IV with mains blocking filter) |
| Batteries | 6 x AA alkaline or NiMH, 12 h typical |
| Ingress protection | IP54 |
| Dimensions | 250 x 100 x 55 mm |
| Weight | 600 g |
| Operating temperature | -10 to 50 °C |
| Supplied with | 100 Ω twisted pair alligator clip cables, bag with clear cover |
Standards
- ENEN 61326-1
