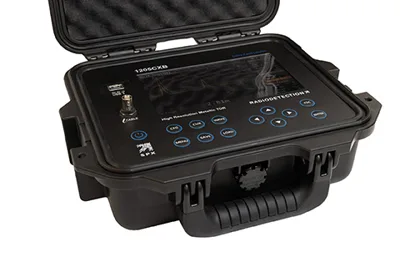

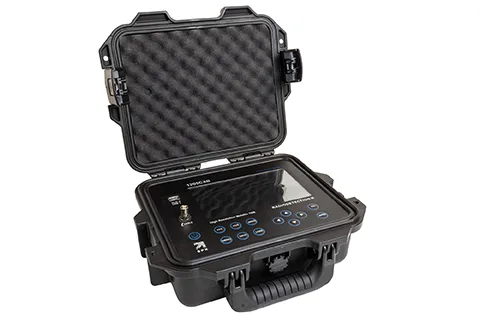

Cable Test and Fault Location1205CXB Metallic Cable Analyser / Fault Finder (TDR)
Part number
10/1205CXB
A rugged time domain reflectometer for finding faults on copper and other metallic cables, with a 7-inch colour display and every TDR control on the top screen. It scans automatically for faults, calculates return loss at both cursors and stores waveforms on board or to a USB stick.
±2.5 cmResolution
30Maximum range
1 GS/sEffective sampling rate
500 on boardWaveform storage
Specifications
| Pulse widths | 3 ns to 10 µs (12 steps) |
|---|---|
| Distance accuracy | 0.1% of reading ±0.1 m |
| Resolution | ±2.5 cm |
| VoP range | 10.0 to 99.9% |
| Maximum range | 30,000 m at 99.9% VoP (20,000 m at 66% VoP) |
| Effective sampling rate | 1 GS/s |
| Fault severity | Automatic return loss (dBRL) at both cursors |
| Input protection | 500 V (AC + DC) from DC to 400 Hz |
| Display | 7-inch colour, 800 x 480 |
| Waveform storage | 500 on board, unlimited on USB stick (.bmp and .btr) |
| Battery | Li-Ion 15.6 Ah, 6 h typical run time |
| Ingress protection | IP54 lid open, IP68 lid closed |
| Operating temperature | 0 to +50 °C |
| Weight | 3.0 kg |
Standards
- EN 61326-12013
- ENEN 55011
- ENEN 61000-3-2
- ENEN 61000-3-3
- FCCFCC Part 15B Class A
- ICES-003(A)ICES-003(A)
- RoHSRoHS 2011/65/EU
