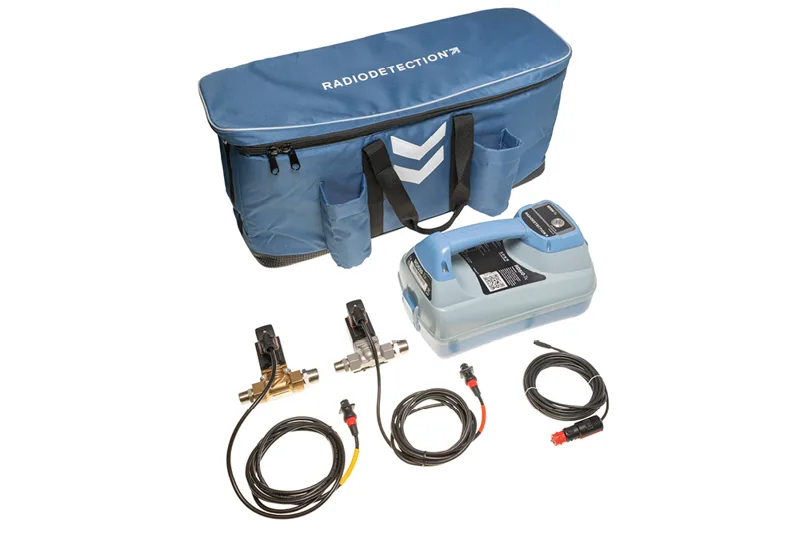

Utility Locating and DetectionRD510 Pulsed Water Transmitter - Standard Pressure (4 bar)
Part number
10/RD510-TX-STD
An acoustic system for tracing plastic and metal water pipes and pinpointing leaks. A pulsed water transmitter connected to a hydrant, meter or tap sends a traceable pressure pulse down the pipe, and the ground microphone with a 7-inch touch-screen control unit picks it up to follow the pipe and locate leaks up to about 5 m deep.
4 barPulsed water valve
ABSConstruction
-20 to 50 °COperating temperature
3 kgShipping weight
Specifications
| Contents | Pulsed water transmitter, soft bag, 4 bar pulsed water valve, 12 V DC power adaptor, waste hose, tap damper with hose adaptor kit and tap |
|---|---|
| Pulsed water valve | 4 bar |
| Power | 8 x D-cell alkaline, 12 V DC input or optional Li-Ion pack |
| Operating time | up to 8 h at 20 °C |
| Ingress protection | IP65 with tool tray fitted |
| Construction | ABS |
| Operating temperature | -20 to 50 °C |
| Case dimensions | 20.3 x 34.3 x 22.8 cm (H x L x W) |
| Shipping weight | 3 kg |
Standards
