Utility Locating and DetectionRD510 Water Pipe Locator and Leak Detector Receiver Set
Part number
10/RD510-RX
An acoustic system for tracing plastic and metal water pipes and pinpointing leaks. A pulsed water transmitter connected to a hydrant, meter or tap sends a traceable pressure pulse down the pipe, and the ground microphone with a 7-inch touch-screen control unit picks it up to follow the pipe and locate leaks up to about 5 m deep.
1 to 1000 HzFrequency range
-20 to 50 °COperating temperature
9 kgShipping weight
Specifications

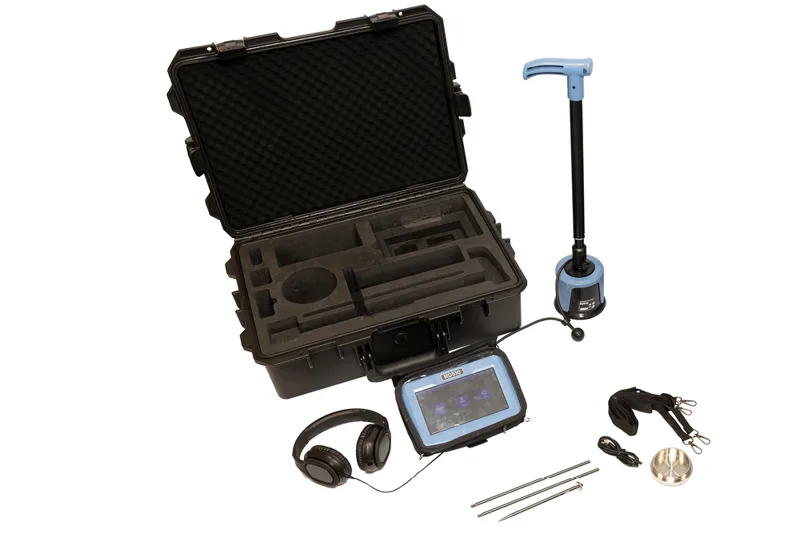

| Contents | Hand-held control unit with soft cover, acoustic sensor, telescopic pole, soft-ground spikes, hard-ground plate, headset, USB cable, memory card, transit case |
|---|---|

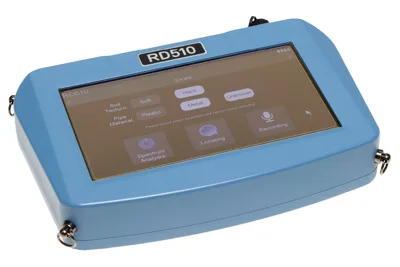

| Display | 7-inch HD colour touch screen |
| Operating modes | Spectrum analysis, locating |
| Frequency range | 1 to 1000 Hz |
| Acoustic sensor | Piezoelectric ceramic ground microphone with telescopic pole |
| Gain | 10 adjustable levels |
| Volume | 10 adjustable levels |
| Leak detection depth | up to 5 m (ground and pipe dependent) |
| Pipe tracing | up to 45 m from the transmitter (ground and pipe dependent) |
| Receiver power | Internal Li-Ion battery, up to 8 h |
| Operating temperature | -20 to 50 °C |
| Power input | 5 V 2 A micro USB |
| Case dimensions | 22.5 x 60 x 45 cm (H x L x W) |
| Shipping weight | 9 kg |
