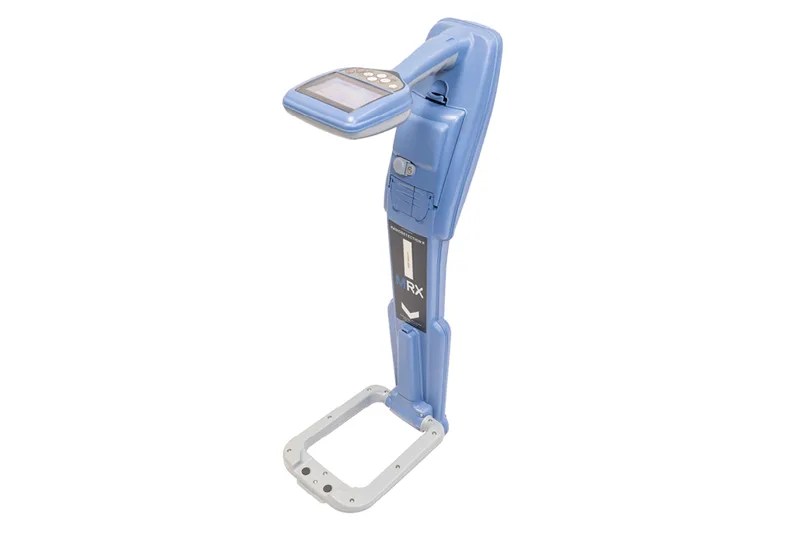

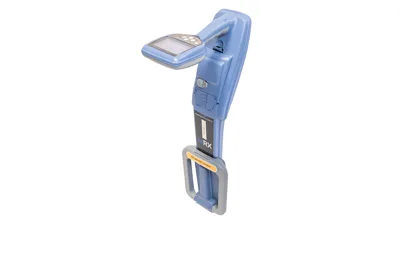

Utility Locating and DetectionMRX RF Marker Locator
Part number
MRX

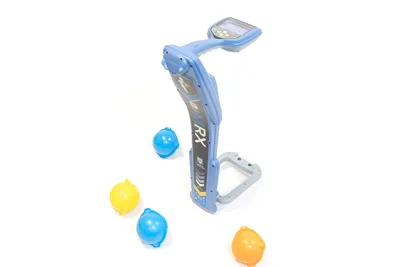

A dual-function precision locator that finds buried cables and pipes and detects buried RF utility markers in one tool. It offers 8 active locate frequencies, 4 sonde frequencies, fault finding with an A-frame and remote transmitter control.
cableFunction
PeakActive locate modes
8 (512HzActive locate frequencies
PowerPassive modes
Specifications
| Function | cable, pipe and RF marker locating |
|---|---|
| Active locate modes | Peak, Peak+, Guidance, RF Marker, Combined |
| Active locate frequencies | 8 (512Hz, 640Hz, 8kHz, 33kHz, 65kHz, 83kHz, 131kHz, 200kHz) |
| Passive modes | Power, Radio, CPS |
| Sonde frequencies | 512Hz, 640Hz, 8kHz, 33kHz |
| Depth accuracy | ±3% (cable/pipe/sonde) |
| Maximum depth readout | 30 m cable/pipe |
| RF marker types | 9 (PFR, PUR, CTV, GAS, TEL, SAN, PDE, H2O, PWR |
| Battery | Li-Ion pack, 15 h run-time (50% duty) |
| Sensitivity | 6E-15 Tesla |
| Weight | 2.0 kg with battery |
| Ingress protection | IP65 (antenna loop IP55) |
| Dimensions | 648 x 350 x 177 mm |
| GNSS | external only, via Bluetooth |
Standards
- CE Safety EN 61010-12010/A1:2019
- CE EMC EN 61326-12021
- CECE Radio EN 301 489-3, EN 301 489-17, EN 300 330, EN 300 328
- CECE SAR EN 50566, EN 62479
- IPIP EN 60529
- REDRED 2014/53/EU
- LVDLVD 2014/35/EU
- EMCEMC 2014/30/EU
- RoHSRoHS 2011/65/EU
- FCCFCC 47CFR 15
- ICES-003ICES-003
- ISO 90012015 (manufacturing)
Related items

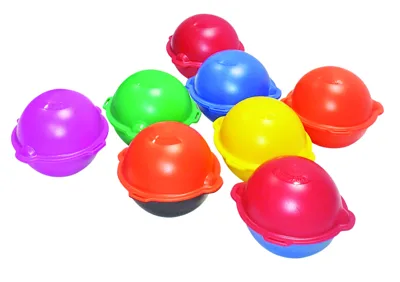

RF Marker Balls61/OMPOWER-MK2Radiodetection RF Marker Ball - Electrical power (Red, 169.8 kHz)
