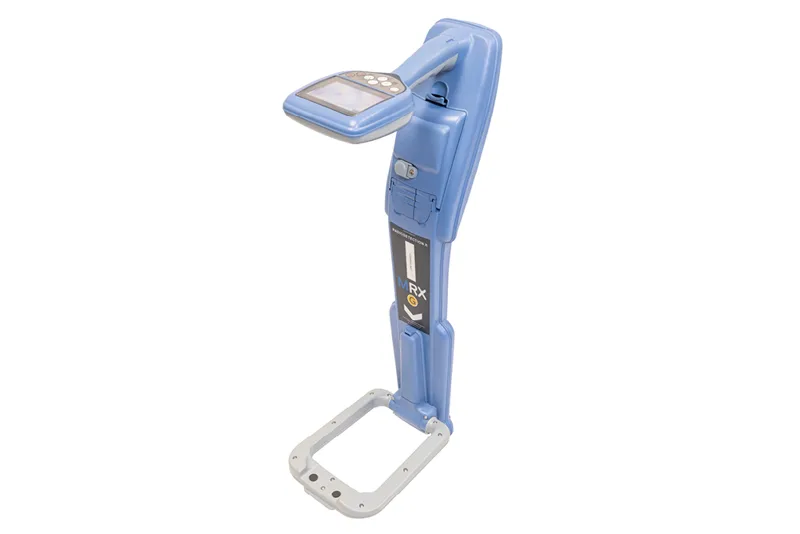

Utility Locating and DetectionMRX G RF Marker Locator with GNSS
Part number
MRX G
An advanced RF marker and utility locator with 21 active frequencies, Current Direction and onboard GNSS for congested sites. It logs locate data with position every second and exports survey points for use in digital mapping.
cableFunction
7 (PeakActive locate modes
21Active locate frequencies
PowerPassive modes
Specifications
| Function | cable, pipe and RF marker locating with onboard GNSS |
|---|---|
| Active locate modes | 7 (Peak, Peak+, Guidance, Broad Peak, Null, RF Marker, Combined) |
| Active locate frequencies | 21, ELF (98/128Hz) to 200kHz, plus up to 5 custom 50Hz-1kHz |
| Passive modes | Power, Radio, CPS, CATV |
| Current Direction (CD) | yes, incl. 4kHz CD |
| Onboard GNSS | GPS + GLONASS, 2.5 m CEP with SBAS |
| Usage logging | 4 GB, every second, over 500 days |
| Sonde frequencies | 512Hz, 640Hz, 8kHz, 33kHz |
| Depth accuracy | ±3% (cable/pipe/sonde) |
| Maximum depth readout | 30 m cable/pipe |
| RF marker types | 9 (PFR, PUR, CTV, GAS, TEL, SAN, PDE, H2O, PWR |
| Battery | Li-Ion pack, 15 h run-time (50% duty) |
| Weight | 2.0 kg with battery |
| Ingress protection | IP65 (antenna loop IP55) |
| Dimensions | 648 x 350 x 177 mm |
Standards
- CE Safety EN 61010-12010/A1:2019
- CE EMC EN 61326-12021
- CECE Radio EN 301 489-3, EN 301 489-17, EN 301 489-19, EN 303 413, EN 300 330, EN 300 328
- CECE SAR EN 50566, EN 62479
- IPIP EN 60529
- REDRED 2014/53/EU
- LVDLVD 2014/35/EU
- EMCEMC 2014/30/EU
- RoHSRoHS 2011/65/EU
- FCCFCC 47CFR 15
- ICES-003ICES-003
- ISO 90012015 (manufacturing)
