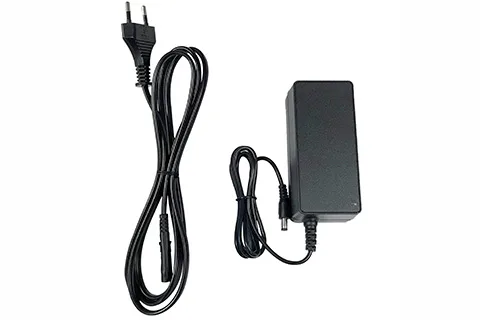

Utility Locating and DetectionRadiodetection Transmitter Li-Ion Mains Charger
Part number
10/TX-MCHARGER-V2
Mains and 12 V automotive chargers for Radiodetection locator and transmitter lithium-ion battery packs. They use CC/CV charging with overcurrent, overvoltage and short-circuit protection and a built-in timer.
100-240 V acInput
12.6 V dcOutput
IECInput connector
CNPlug options
Specifications
| Input | 100-240 V ac, 50-60 Hz, 1 A |
|---|---|
| Output | 12.6 V dc, 2.5 A |
| Input connector | IEC |
| Plug options | CN, EU, UK, AU, US |
| IP rating | IP20 (indoor use) |
| Indication | Red charging, green charged |
| For | 10/TX-BATPACK-V2 transmitter pack |
Standards
- UL1310UL1310
- IECIEC EN60335
- CECE (LVD, EMC, RoHS)
- UKCAUKCA
- ETLETL
- FCCFCC
- BCBC
- PSEPSE
- RCMRCM
