Utility Locating and DetectionRadiodetection Earth Mat
Part number
10/TX-EARTHMAT

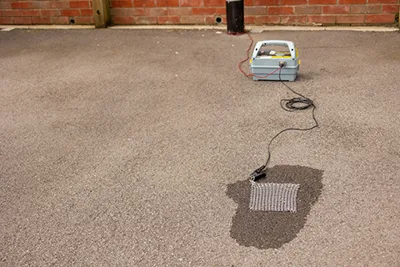

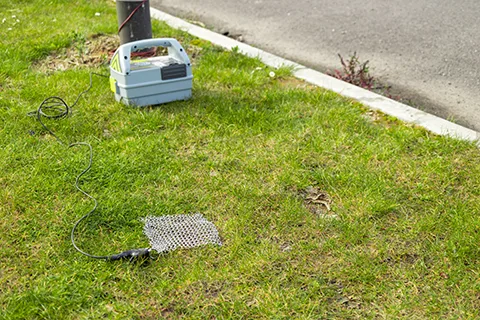

A stainless steel mesh mat that gives a transmitter or Genny an earth return path without driving a stake. It lets the operator scan the ground first and works on concrete and asphalt.
SoilSurfaces
Laid flatUse
Specifications
| Material | Stainless steel wire mesh |
|---|---|
| Size | 17 cm (7 in) square |
| Function | Earth return path for Genny and Tx-10 signals |
| Surfaces | Soil, grass, concrete and asphalt |
| Use | Laid flat, connected to the earth lead, wetted for a better signal |
| Purpose | Safe earthing before a scanned earth stake is used |
