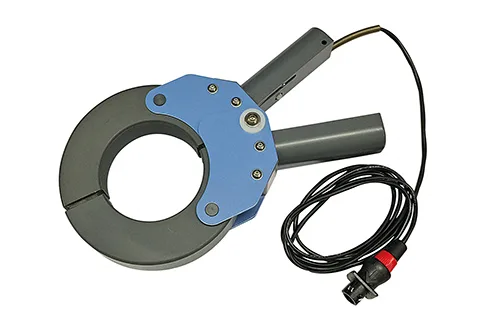

Utility Locating and DetectionRadiodetection Transmitter Current Direction (CD) Clamp
Part number
10/TX-CD-CLAMP
Clamps that induce a transmitter signal onto one chosen cable or pipe when a direct connection is not possible, including on live cables. A non-conductive rod extends the reach of the clamp.
Specifications
| Type | Current Direction (CD) signal clamp |
|---|---|
| Signals | CD signal or low-frequency transmitter signal |
| Frequency range | Below 1 kHz (the only transmitter clamp usable under 1 kHz) |
| Application | Identifying individual utilities in congested areas |
| Compatible with | Radiodetection Tx transmitters with CD output (Tx-10(B)) |
Standards
