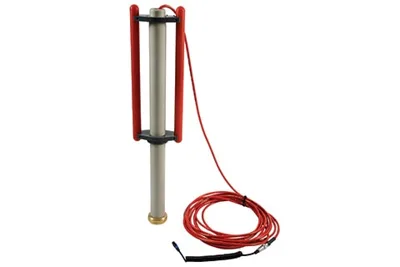

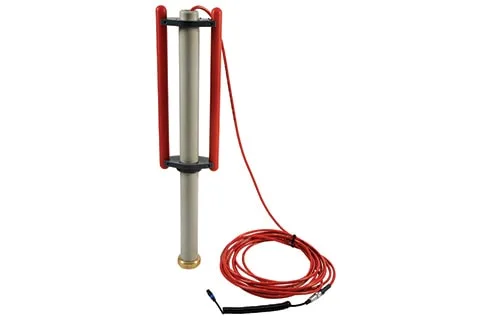

Utility Locating and DetectionRadiodetection Submersible Double Depth Antenna 640/512 Hz
Part number
10/RX-SUBANTENNA-640
A submersible remote antenna for precision locators that doubles the effective depth range when tracing cables and pipes under rivers and the sea. It is lowered from a non-metallic boom and powered from the locator.
Specifications
| Frequency | 640 Hz / 512 Hz |
|---|---|
| Construction | Polypropylene, neutral buoyancy with brass weight |
| Dimensions | 106 x 25 x 11 cm |
| Weight | 9 kg with 10 m cable |
| Sealing | IP68 to 100 m depth |
| Depth accuracy | Line 6 m +/-5%, sonde 15 m +/-5% |
| Locate accuracy | +/-5% of depth |
| Antennas | 2 dual-wound symmetrical antennas (Peak) |
| Operating temperature | -20 to +50 °C |
| Power | From the locator accessory socket, no batteries |
| Cable | 10 m submersible cable supplied, up to 100 m on request |
| Compatible with | Precision series locators with accessory socket |
