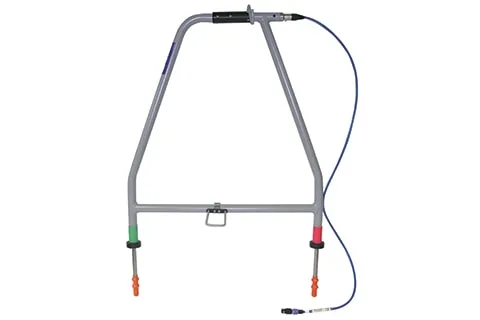

Utility Locating and DetectionRadiodetection A-Frame
Part number
10/RX-AFRAME
A ground-contact frame that plugs into a fault-find locator to pinpoint cable sheath faults and pipeline coating defects. The locator shows fault direction and magnitude using a Fault Find signal from the transmitter.
RD8200Compatible locators
Specifications
| Application | Cable sheath faults and pipeline coating defects |
|---|---|
| Display | Fault direction and magnitude on the locator |
| Compatible locators | RD8200, RD8200G, RD8100, RD7KTL, RD7KPL, RD8KPDL(B) |
| Transmitter required | Tx-3(B) or Tx-10(B) with Fault Find signal |
