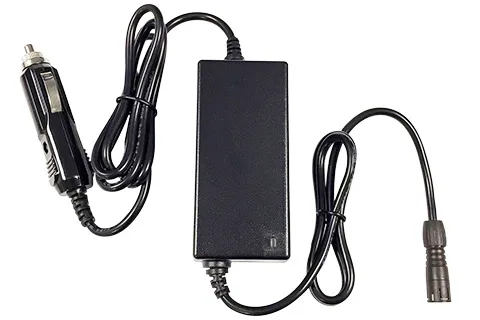

Utility Locating and DetectionRadiodetection Locator Li-Ion Automotive Charger
Part number
10/RX-ACHARGER-V2
Mains and 12 V automotive chargers for Radiodetection locator and transmitter lithium-ion battery packs. They use CC/CV charging with overcurrent, overvoltage and short-circuit protection and a built-in timer.
10-30 V dcInput voltage
3.0 AInput current
4.2 V dcOutput
4-pinBattery connector
Specifications
| Input voltage | 10-30 V dc |
|---|---|
| Input current | 3.0 A |
| Output | 4.2 V dc, 3.0 A |
| Input connector | Automotive aux plug |
| Battery connector | 4-pin |
| Protection | 5 A fuse |
| IP rating | IP20 (indoor use) |
| Indication | Red charging, green charged |
| For | 10/RX-BATPACK-V2 locator pack |
Standards
- UL1310UL1310
- IECIEC EN60335
- CECE (LVD, EMC, RoHS)
- UKCAUKCA
- ETLETL
- FCCFCC
- BCBC
- PSEPSE
- RCMRCM
