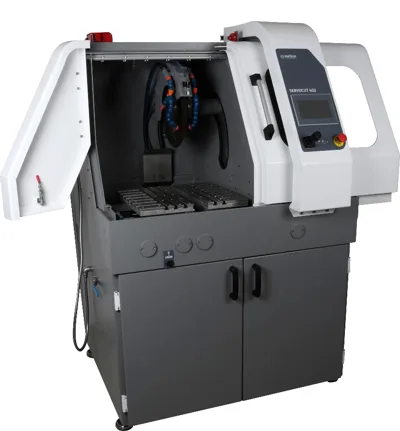

Laboratory Sample PreparationKemet Servocut 302-AA Automatic Abrasive Cut-Off Machine
Part number
Servocut 302-AA
Wet abrasive cut-off machines for sectioning metallographic specimens, from the manual Metacut 302 to the programmable three-axis Servocut 302, 402 and 502 ranges. They cut metals, ceramics and composites with clamping on stainless T-slot tables and recirculating coolant.
600-4000 rpmWheel speed
20-5000 µm/sCutting feedrate
StandardTable oscillating, rapid pulse, smart feed
Ø300 mmMax. wheel diameter
Specifications
| Chop cutting Z / table feed Y | Automatic / Automatic |
|---|---|
| Wheel speed | 600-4000 rpm |
| Cutting feedrate | 20-5000 µm/s |
| HMI | 7 inch touch screen |
| Table oscillating, rapid pulse, smart feed | Standard |
| Max. wheel diameter | Ø300 mm |
| Max. cutting capacity | Ø110 mm / 70 x 200 mm (HxD) |
| Axis travel | Z 125 mm, Y 220 mm |
| T-table | 495 x 275 mm, 12 mm slots |
| Cutting motor | 4 kW (S1) |
| Recirculation cooling unit | 80 l |
| Size WxDxH | 94 x 99 x 76 cm |
| Weight | 250 kg |
| Voltage | 400V 3-phase 50Hz |
Standards
