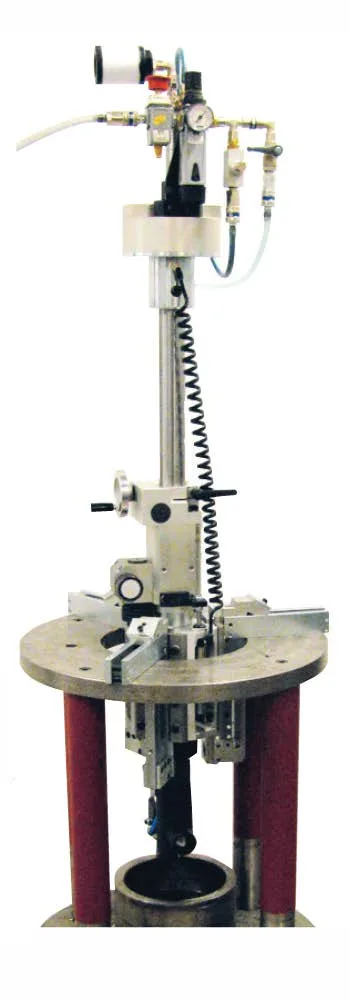

Valve Maintenance EquipmentModel C2 Valve Cutting, Milling and Grinding Machine
Part number
Model C2
Portable, easy-to-mount machines that cut, mill and grind seats of globe, safety and control valves in place. The base unit comes in three sizes, C1, C2 and C3.
600 mm (24")A max
CuttingFunctions
GlobeValve types
PortableConstruction
Specifications
| Seat range B | Ø 50 - 400 mm (2" - 16") |
|---|---|
| A max | 600 mm (24") |
| C max | 1000 mm (40") |
| Functions | Cutting, milling and grinding in situ |
| Valve types | Globe, safety and control valves |
| Repairs | Gasket surfaces, cylindrical and flat control areas, gasket welds, seat cutting |
| Construction | Portable, stable, easy to mount |
