Laboratory Sample PreparationKemet Forciplan 352 Automatic Planar Grinder
Part number
Forciplan 352
Production-scale systems for large specimens or high sample counts: planar grinders with automatic stone dressing, 350 mm grinder/polishers with cleaning stations, and the Velox fully automatic lines that change holders and discs without an operator.
50-750 NCentral force
Ø350 mmGrinding stone
350 WHead motor
0-5 mmGrinding depth
Specifications
| Max. specimen holder | Ø220 mm (10 specimens) |
|---|---|
| Central force | 50-750 N |
| Grinding stone | Ø350 mm, 4 kW, 500-2000 rpm |
| Head motor | 350 W, 50-200 rpm, CW/CCW |
| Grinding depth | 0-5 mm, 10 µm steps |
| Automatic dressing | Diamond tip, 10-100 µm, every 20-600 s |
| HMI | 7 in, 99 programs |
| Dimensions WxDxH | 111 x 84 x 160 cm |
| Weight | 630 kg |
| Voltage | 400V 3-phase 50/60Hz |
Standards
Related items

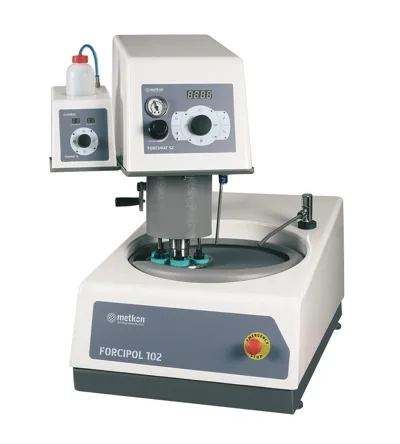

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsForcipol 102Kemet Forcipol 102 Single-Wheel Grinding/Polishing Machine

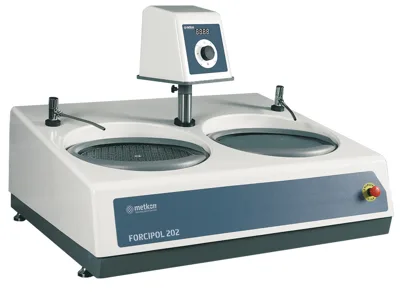

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsForcipol 202Kemet Forcipol 202 Twin-Wheel Grinding/Polishing Machine

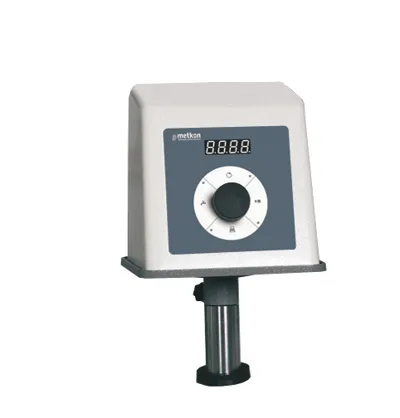

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsForcipol Control UnitKemet Forcipol Control Unit (manual operation)

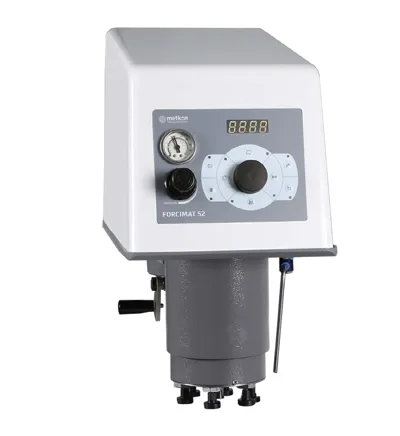

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsForcimat 52Kemet Forcimat 52 Semi-Automatic Specimen Head

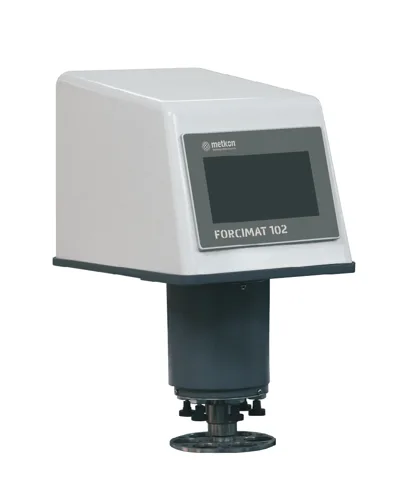

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsForcimat 102Kemet Forcimat 102 Programmable Automatic Specimen Head

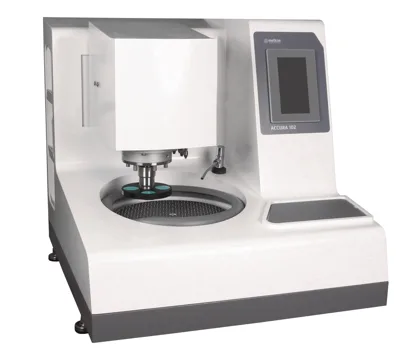

Forcipol & Digiprep Grinding/Polishing Machines and Forcimat HeadsDigiprep Accura 102Kemet Digiprep Accura 102 Automatic Grinding/Polishing System

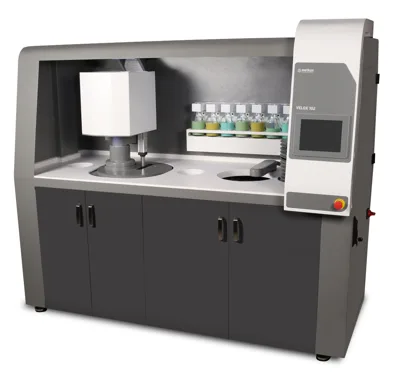

High-Volume Grinding & Polishing Systems (Velox, Forciplan, Forcipol 352)Velox 102Kemet Velox 102 Fully Automatic Grinding & Polishing System

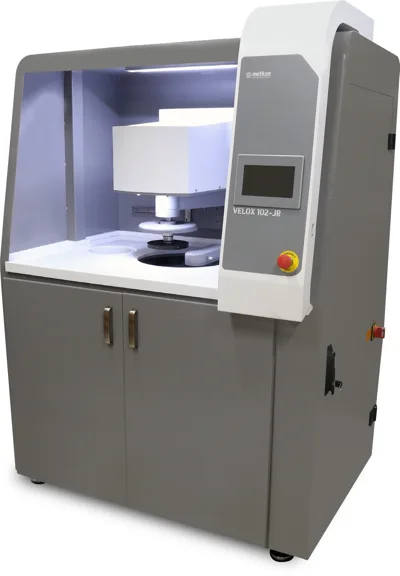

High-Volume Grinding & Polishing Systems (Velox, Forciplan, Forcipol 352)Velox 102-JRKemet Velox 102-JR Compact Automatic Grinding & Polishing System
