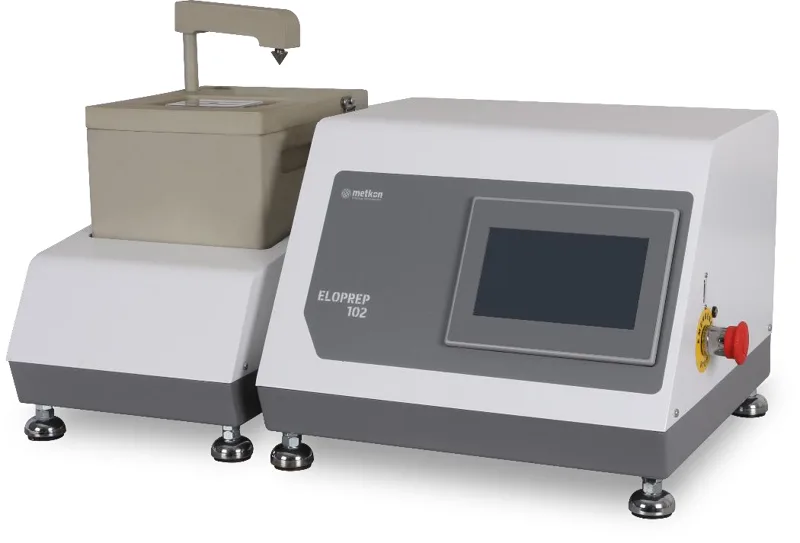

Laboratory Sample PreparationKemet Eloprep 102 Electrolytic Polishing & Etching Machine
Part number
Eloprep 102
Final-stage machines that remove the last deformation from a specimen: the Eloprep electrolytic polisher/etcher and the Vibrapol vibratory polisher for stress-free surfaces for EBSD, SEM and AFM work.
30-50 °CTemperature limiter
IntegratedCooling
AutomaticScanning function
7 in HMIControl
Specifications
| Temperature limiter | 30-50 °C |
|---|---|
| Pump | Magnetic stirrer |
| Volume | 1000 ml electrolytic container / 1200 ml external etching |
| Cooling | Integrated |
| Masks | 0.5 / 1 / 2 / 5 cm2 |
| Scanning function | Automatic |
| Output | 0-120 V polishing, 0-35 V etching, 0-15 V external etching |
| Control | 7 in HMI, 99 programs |
| Dimensions | Control unit 404 x 370 x 305 mm (20 kg), polishing unit 210 x 370 x 305 mm (5 kg) |
| Voltage | 230V 1-phase 50Hz |
