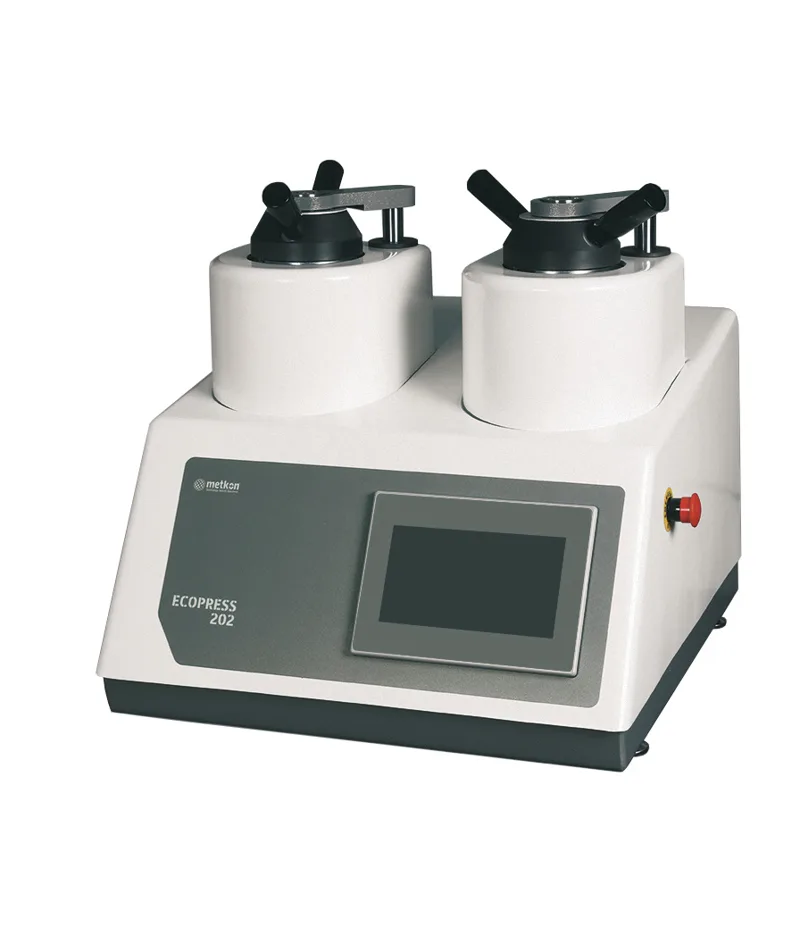

Laboratory Sample PreparationKemet Ecopress 202 Automatic Hot Mounting Press (twin cylinder)
Part number
Ecopress 202
Electro-hydraulic hot mounting presses that embed specimens in resin under heat and pressure for uniform, easy-to-handle mounts with good edge retention. No compressed air is needed and a full cycle takes 7-9 minutes.
2Number of moulds
2 x 1650 WHeating power
54 kgWeight
300 barMax pressure
Specifications
| Number of moulds | 2 |
|---|---|
| Heating power | 2 x 1650 W |
| Size | 490 x 550 x 480 mm |
| Weight | 54 kg |
| Max pressure | 300 bar |
| Max temperature | 200 °C |
| Cooling | Water and slow cooling |
| Operation | Programmable electro-hydraulic, 7 in HMI touch screen |
| Mould assembly | Ø25-50 mm with intermediate ram (2 mounts per cylinder) |
| Voltage | 230V 1-phase 50Hz |
