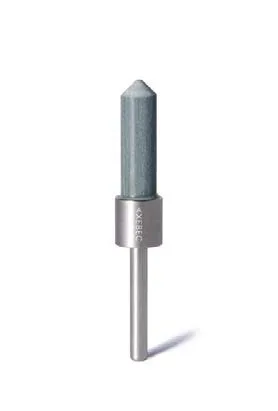

Tools and ConsumablesCeramic Fibre Mounted Point AX-PM-6T, Taper 6 mm, #220
Part number
AX-PM-6T
Rotary deburring tools whose heads are made of abrasive ceramic fibre instead of loose grit, so they cut across the whole surface without clogging or scratching. Flexible-shaft balls, cylinders and discs deburr holes front and back; points and end brushes remove machining marks.
AX-PM-6TModel
TaperHead shape
6 mmHead size
20 mmHead length
Specifications
| Model | AX-PM-6T |
|---|---|
| Head shape | Taper |
| Head size | 6 mm |
| Head length | 20 mm |
| Shank diameter | 3 mm |
| Equivalent grit | #220 (Gray) |
| Max speed | 60000 min-1 |
| Drive | pneumatic tool, high speed |
