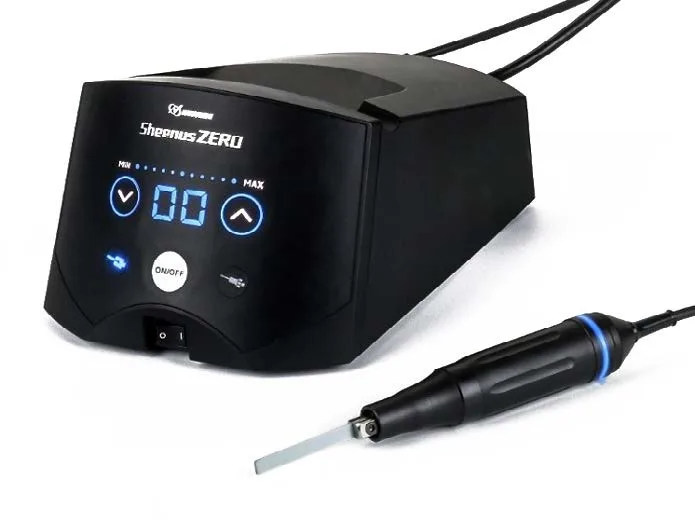

Tools and ConsumablesUltrasonic Polisher Set Sheenus ZERO, 230 V
Part number
340100
Bench control unit with an ultrasonic handpiece that vibrates a stone or diamond file at 19-29 kHz. Used to grind, deburr and mirror-polish mould and die details, ribs and EDM surfaces.
27 WRated power consumption
1.5 kgControl unit weight
40 µmMax vibration amplitude
handpieceIncluded
Specifications
| Model | Sheenus ZERO Set |
|---|---|
| Supply voltage | 230 V (rated input AC 100-240 V) |
| Oscillation frequency | 19-29 kHz (auto-tracking) |
| Output | 45 W max UNCLAMP / 20 W max CLAMP, 21 steps |
| Rated power consumption | 27 W |
| Control unit dimensions | W 161 x D 256 x H 84 mm |
| Control unit weight | 1.5 kg |
| Handpiece | M6 x P0.9 attachment thread, Ø 28 x 134 mm, 140 g, 3 m cord |
| Max vibration amplitude | 40 µm |
| Included | handpiece, foot pedal FC-24, tool box, #200 diamond file, #800 ceramic stone, 2 tip holders |
