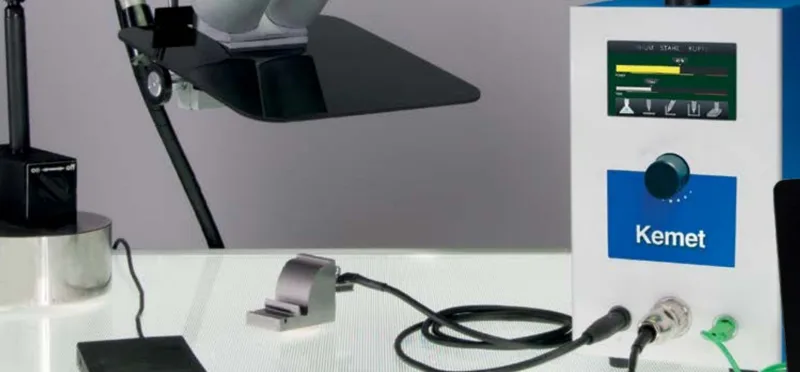

Tools and ConsumablesKemWelder IV Welding System
Part number
339102
Argon-shielded micro welding system for fast, precise repairs in tool and mould making, with a 10x microscope and automatic eye-protection shutter. Pre-set parameters cover steels and aluminium with filler wire up to Ø 0.8-1.0 mm.
KemWelder IVModel
80%Duty cycle
0.8 sMax charge time
IP 21SProtection
Specifications
| Model | KemWelder IV |
|---|---|
| Supply | 230 V 50-60 Hz ±10%, 400 VA, fuse T 3.15 A |
| Load voltage | 30-43 V (no-load 43 V) |
| Duty cycle | 80% |
| Max charge time | 0.8 s |
| Shielding gas | Argon 4.6 at 2 bar |
| Protection | IP 21S, insulation class B |
| Dimensions | 320 x 155 x 320 mm |
| Weight | 8.2 kg |
| Microscope | stereo 10x, LED, electronic shutter, hydraulic swivel arm, 1,200 N magnet |
| Filler capacity | up to Ø 0.8 mm (1.0 mm in some conditions) |
