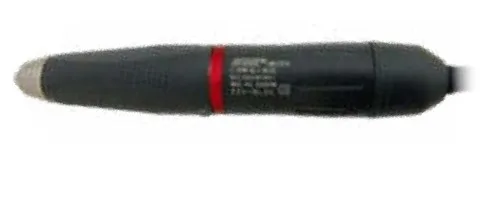

Tools and ConsumablesBrushless Rotary Handpiece C-HPM-BL1
Part number
332084
Hand-held reciprocating machines that drive files, stones and laps with a 0-6 mm stroke for filing, lapping, honing, deburring and polishing moulds. Available air-driven, flexible-shaft driven or with electric micro-motors and power units.
C-HPM-BL1Model
max 40Speed
8.5 N·cmTorque
max 230 WPower
Specifications
| Model | C-HPM-BL1 |
|---|---|
| Speed | max 40,000 rpm |
| Torque | 8.5 N·cm |
| Power | max 230 W |
| Weight | 350 g |
| Dimensions | L 159 x Ø 27 mm |
| Collet | 3.0 mm (2.35 mm optional) |
| Power unit | TPU-20 |
Standards
