Control Systems (DCS / PLC)7800 Series S7800A1001 Keyboard Display Module, English
Part number
S7800A1001

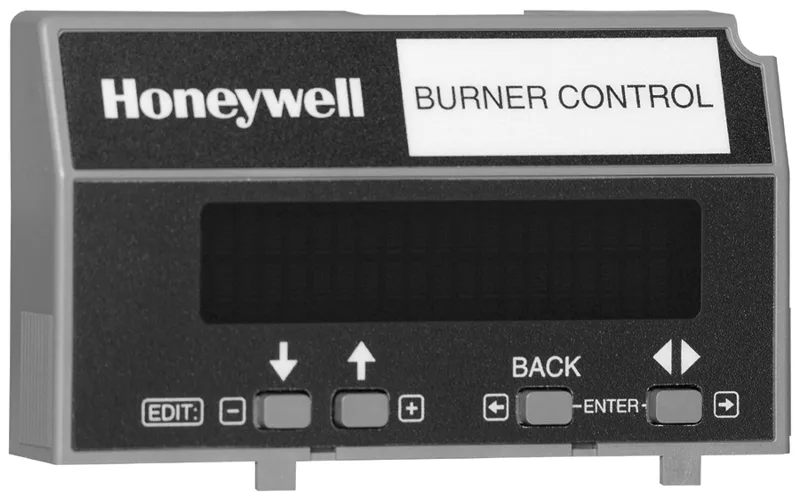

Plug-on keyboard and two-line display for 7800 Series burner control relay modules. It shows sequence status, flame signal, first-out fault annunciation and fault history, and provides remote reset and Modbus access.
EnglishLanguage
7 W maxPower
124 gWeight
Specifications
| Display | 2 rows x 20 characters |
|---|---|
| Language | English |
| Supply | 13 VDC peak full-wave rectified (from relay module) |
| Power | 7 W max, 2 VA max |
| Operating temperature | -40 to +60 °C |
| Storage temperature | -51 to +66 °C |
| Humidity | 85 % RH non-condensing |
| Weight | 124 g |
| Communication | Modbus via 203541 ControlBus connector |
| Functions | sequence status, flame signal, first-out annunciation, 6-fault history, remote reset |
| Enclosure | NEMA 4 with 204718A/C cover |
Standards
- ULUL Listed File MP268
- CSACSA LR9S329-3
- FMFM Report J.I.1V9A0.AF
- FCCFCC Part 15 Class B
- ENEN 60730
