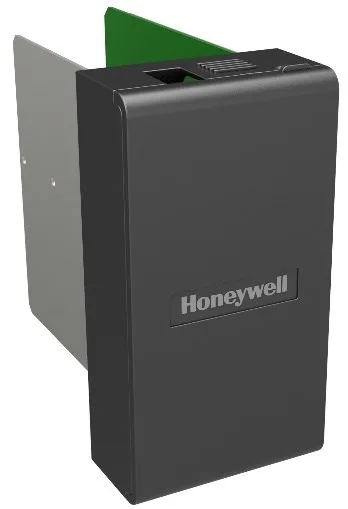

Control Systems (DCS / PLC)HC900 Digital Input Module, Contact Closure, 16 Channel
Part number
900G01-0202
Plug-in analog, digital and pulse I/O modules for the ControlEdge HC900 hybrid loop and logic controller. Each module has its own processor, status LEDs and keyed terminal block, and can be removed and inserted under power.
16Inputs
1000 ΩMax contact resistance
2.6 mASwitching current
4 ms off-onResponse
Specifications
| Inputs | 16, contact closure, self-powered |
|---|---|
| Voltage supplied | 15 VDC nominal |
| Max contact resistance | 1000 Ω |
| Switching current | 2.6 mA |
| Response | 4 ms off-on, 6 ms on-off |
| Dimensions | 137 x 35.6 mm |
| Weight | 354 g |
| Terminal block | 20-terminal Euro 900TEK-0200 or barrier 900TBK-0200 |
| Operating temperature | 0 to 60 °C |
| Humidity | 10-90 % RH non-condensing |
| Coating | conformal coated (G3 harsh environment) |
Standards
- CE EN 61326-1, EN 61010-1
- ULUL 61010-1 (E201698)
- ATEXATEX II 3 G Ex nA IIC Gc (HON 08.0201)
- CSACSA Class I Div 2 Groups A-D (1367757)
- FMFM Class 1 Div 2 Groups A-D (3011798)
