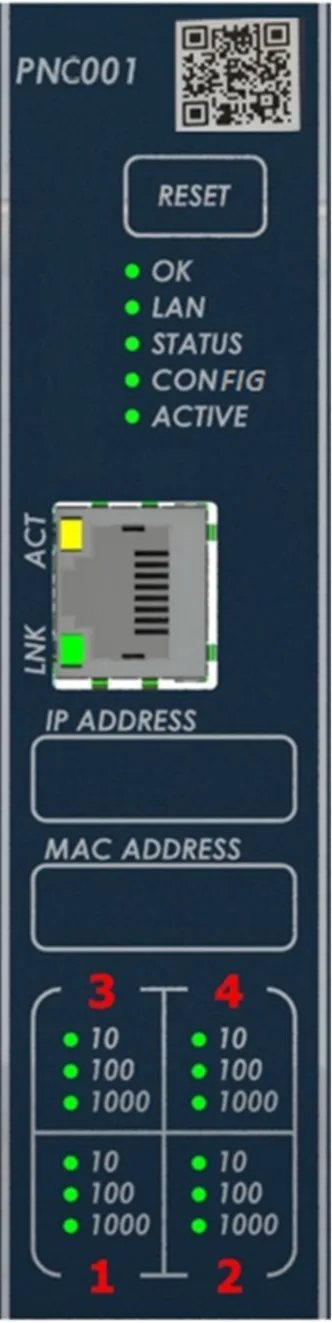

Control Systems (DCS / PLC)PACSystems RX3i PROFINET Controller Module IC695PNC001
Part number
IC695PNC001
Rack-mounted modules for the PACSystems RX3i programmable automation controller: CPUs, I/O and communication modules on the RX3i universal backplane. They let one controller platform handle discrete, analog and networked plant signals.
1 to 512 msUpdate rates
up to 4Controllers per CPU
starTopologies
Specifications
| Function | PROFINET IO controller for RX3i |
|---|---|
| PROFINET support | v2.2 General Class A IO-Controller, S-2 system redundancy |
| Ports | 4 switched: 2x RJ-45 10/100/1000 + 2x SFP cages (SFPs not included) |
| Max IO-devices | 128 per controller |
| Update rates | 1 to 512 ms |
| Controllers per CPU | up to 4, in main CPU rack |
| Power (no SFP) | 0.5 A @3.3 Vdc |
| Operating temperature | -25 to 60 °C (-Bxxx) |
| Topologies | star, ring, line |
Standards
- PROFINETPROFINET IO v2.2 / v2.3 S-2 redundancy
